PDC is the Leader in
Shrink Sealer Technology,
with 3 Distinct Systems
to Meet Every Need
This advanced in-line applicator combines high throughput rates (up to 500 containers per minute)
with true “zero shutdown” performance. Systems will
run as slowly as 200 cpm to synchronize with
slow-downs on processing systems.

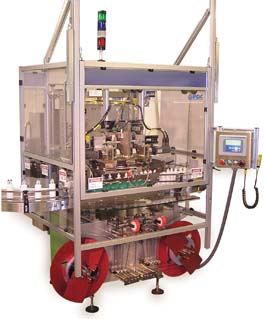

The 90 Series shrink sealer applies bands .375
inches to 3.0 inches (10 to 75 mm) diameter and
.625 inches to 8 inches high.
Standard features of the 90 Series shrink sealer
include stainless steel frame and covers, NEMA 4
enclosures, Allen-Bradley PLC with touch-screen
interface, static eliminator, and complete tooling.
There are sensors for low material and film feed
irregularity, and available sensors for imprint and
bar code verification.
The 90-2 shrink sealer was engineered for the largest,
most demanding projects. Dual-head capability means
it will seal over 400 containers per minute, with true
24/7 performance. Variable in speed, the system
can also run as slowly as 100 cpm per head to
synchronize with production.
Compatible diameter ranges are .375 inches to 3.0
inches (10 to 75 mm); height ranges are .625 inches
to 8 inches. The PDC 90-2 shrink sealer is a precise,
practical solution for the widest range of containers
and cap configurations.
Standard features of the 90-2 include a stainless
steel frame, NEMA 4 enclosures, Allen-Bradley
touch-screen and PLC, static eliminator, and a
robust blade assembly that is an alternative far
superior to traditional (and often unreliable) spinning
knives. There are sensors for low material and film
feed, and available sensors for imprint and bar
code verification.

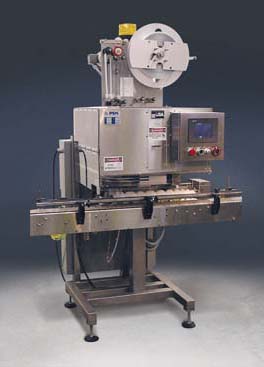

The 50 Series shrink sealer applies tamper
evident banding and shrink sleeve labeling at up
to 130 cpm, continuously.
The 50 Series shrink sealer can apply tamper
evident banding or shrink sleeves, including
full-height body sleeves. Material diameters can
range from .375 to 3" (10-75 mm) and heights
from .625 to 7" (15 to 180 mm).
Despite a moderate price point, 50 Series
shrink sealers have many high-valuable standard
features, including a stainless steel frame, upstream
photo-eyes, a "material-out" sensor, and an Allen
Bradley touch screen interface.
